Structures & flanges

As wind turbine structures continue to grow, achieving precise flange geometry becomes increasingly challenging – and increasingly important.

Even minor deviations in large-diameter flanges can affect bolt preload, structural fit, fatigue performance, and long-term reliability.

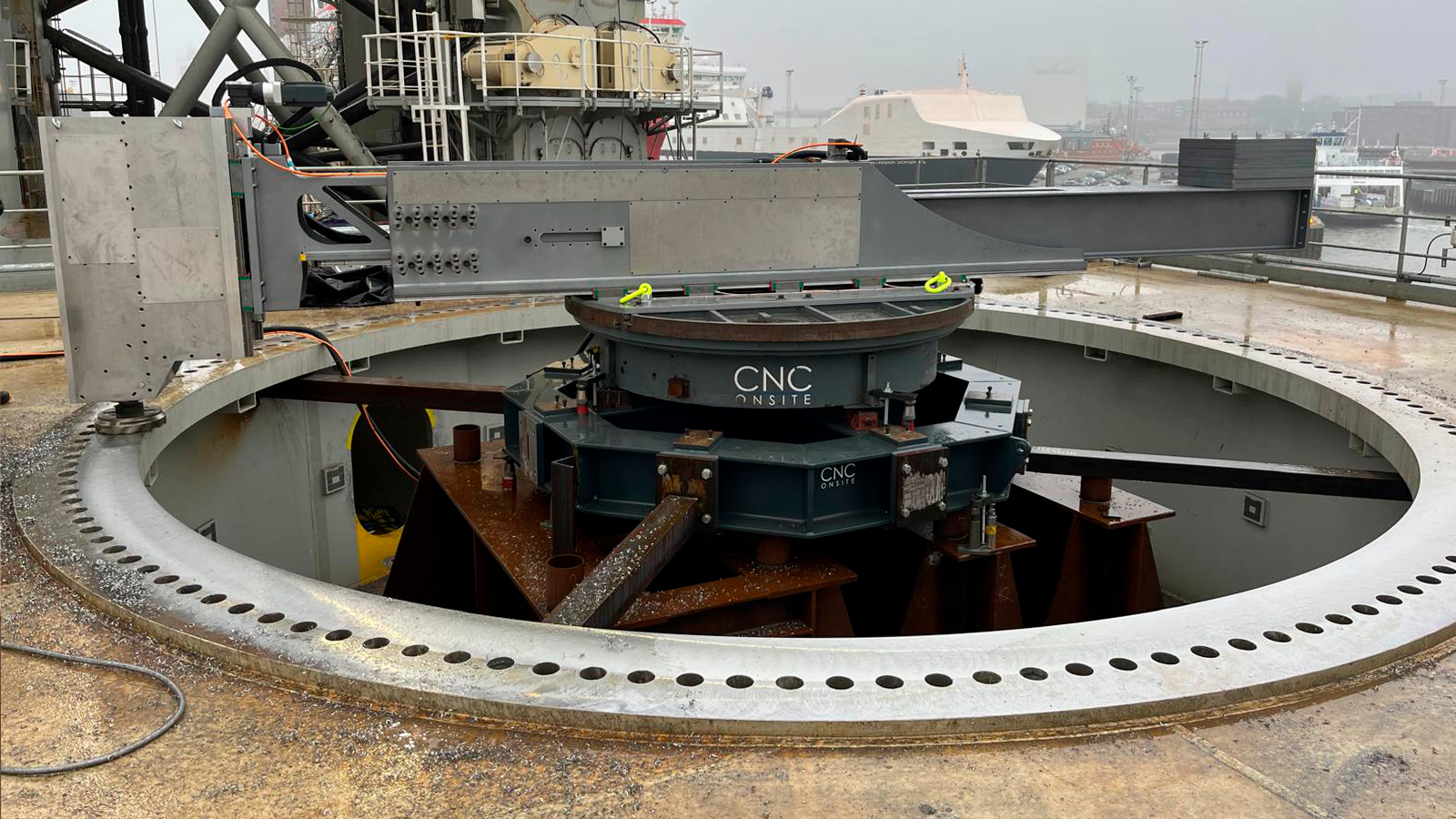

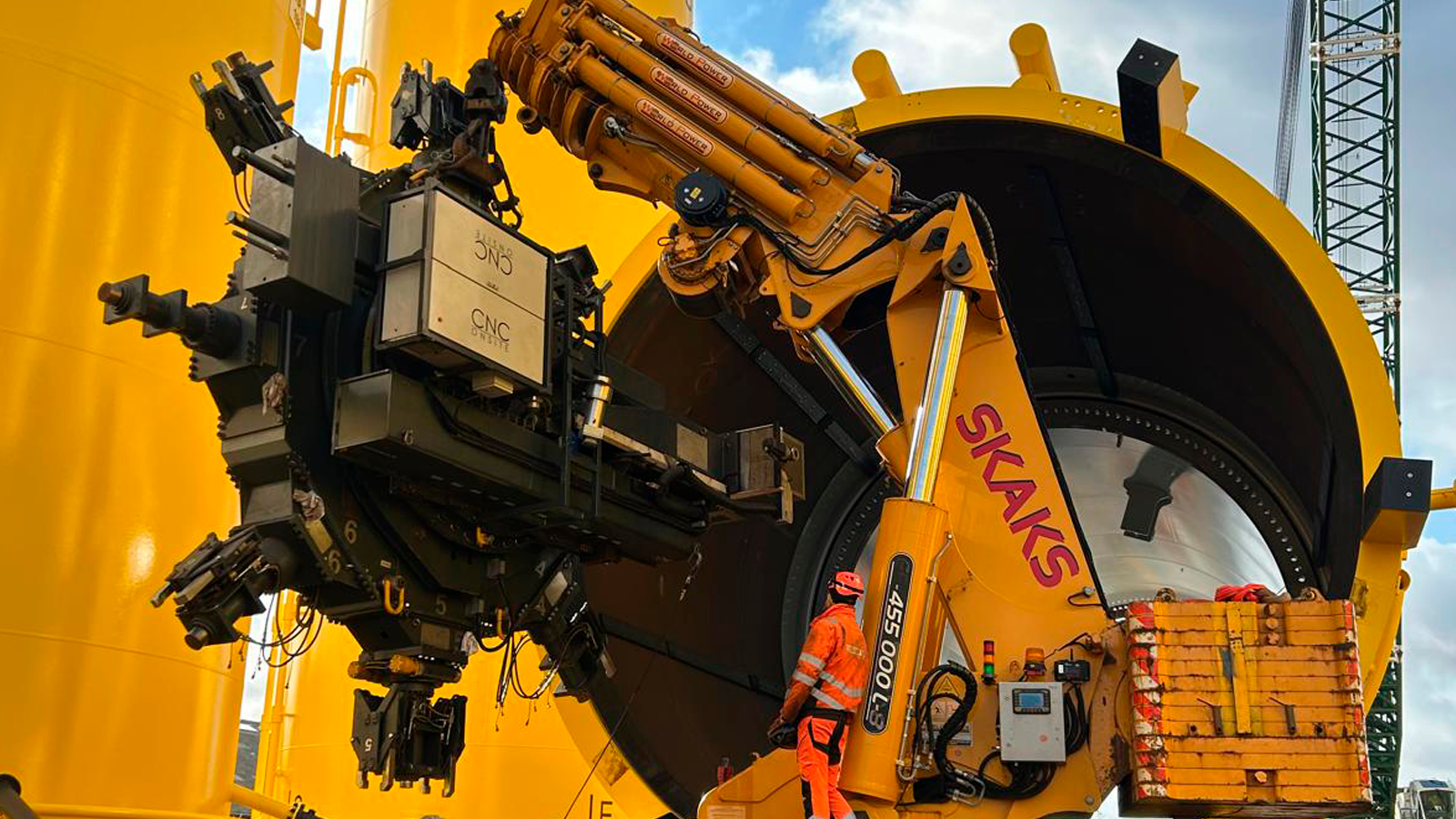

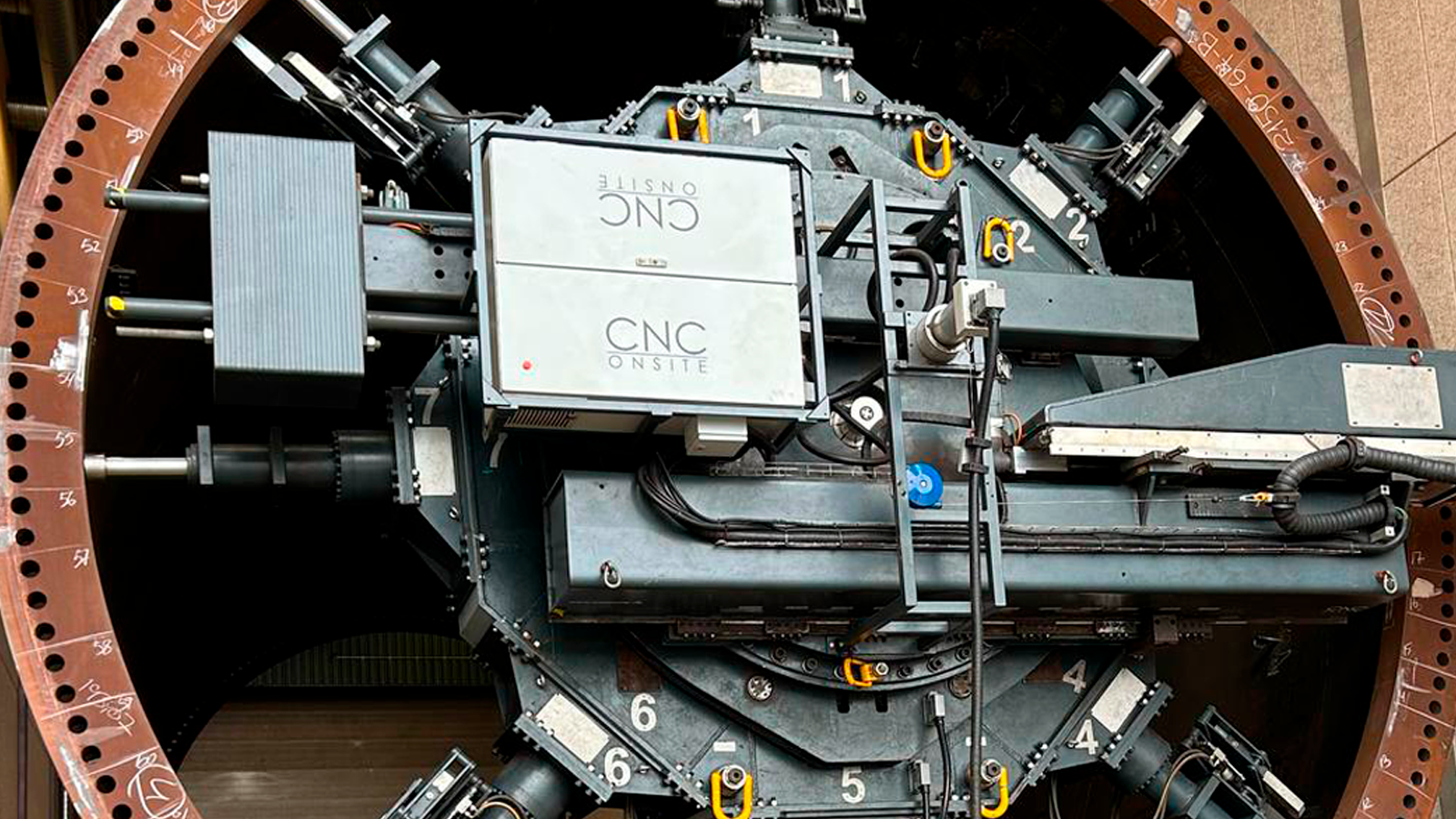

CNC Onsite delivers precision machining of large-scale flanges for monopiles, transition pieces, tower flanges, and sea fastenings. Through controlled CNC machining, we achieve sub-millimetre flatness and uniform contact surfaces that support reliable bolted connections and reduce the need for corrective work during assembly.

Our documented results include:

• < 1.0 mm global flatness and < 0.2 mm local flatness on transition piece flanges
• 0.21 mm global flatness achieved on a 7.5-metre tower flange
• < 1.0 mm global flatness and < 0.2 mm local flatness guaranteed machine performance

The result is a predictable manufacturing process that improves assembly quality, bolt performance, and long-term structural reliability.
